Why does the steel floor decking become increasingly popular?
Within the last few decades, due to the development of high-rise buildings, the steel-concrete composite floor system(composite steel floor decking) has been increasingly popular.
People roll form steel floor decking typically from Galvanized steel of 0.8-1.5mm thickness and 1250mm width. Steel composite floor usually has a ribbed steel decking with embossments designed to interlock with concrete slabs, creating a reinforced concrete slab that serves the dual purpose of a permanent form and positive reinforcement.

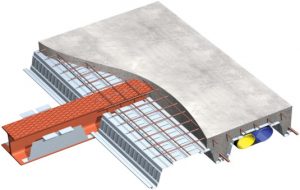

A composite floor decking consists of a reinforced concrete floor slab and structural steel floor beams acting compositely together. The composite steel floor system is ideal for high-rise building construction, due to the tensile strength of steel and the compressive strength of concrete. The international contractors prefer to installing such floor as part of a compoiste flooring system. However, in China, the seel decking acts just as permanent formwork to the concrete.
Actually, people always use the steel floor decking to create a composite structure with the concrete slab poured upon it. The decking rests over the structural steel floor beams network, and contractors can install that by suitable means. In addition, steel floor decking is a versatile and sustainable flooring solution widely acknowledged to minimise onsite construction duration’s.
When you have the chance to view the metal deck in action, you can see different steel decking profiles applied! The determining factors for selecting the proper ones are the depth of the slab, weight of the concrete (normal weight or lightweight), the support spacing and the uniform load you are trying to support.
Composite steel decking construction has contributed significantly to the dominace of steel frames in the commercial building sector.
Compared to the traditional reinforced concrete flooring system, there are many benefits that composite steel flooring decking system would bring.
Greater Durability of Composite Steel Floor Decking System
Steel and concrete composite slabs are lighter and stronger than most conventional slabs. Steel decking provides flexible reinforcement, combined with the comprehensive strength of the concrete, for an all-round stronger slab. It’s available to make different steel decking profiles for inhibitting any longitudinal slip between the steel and concrete in the slab itself, and any transverse movement between the slab and the supporting beams.
Easy and Safe Construction of Steel Floor Decking
People always transport the steel decking to site in pre-cut lengths, and in pre-packaged bundles. We can easily crane these bundles into specific work areas, and the individual sheets quickly laid by hand. Cable trays and pipes can be hung from the underside of the steel decking by attaching to special ‘dovetail’ recesses. During construction, the decking provides other benefits, like acting as a working platform for storage of materials.
Quick Installation of Steel Floor Decking
Composite slabs are an excellent choice when speed of construction is important. Contractors lift bndles of decking into place on the structure, for distribution by hand. No need to use a large numbers of crane lifts, when compared with the precast alternative. The ability to stack the pieces of decking into bundles also reduces transport time and costs. When appropriately orientated and fixed to the steel beams it can restrain them against lateral torsional buckling.
Cost Reduction of Composite Steel Floor Decking System
The different ribbed design for the steel floor deckings minimizes the concrete required for the slab for any slab depth without compromising the strength of the structure or the fire performance. Consequently, this means a lighter, smaller structure and less waste. Besides, this composite steel floor decking system has also dramatically reduced the labour costs, since props are no need.
More Flexible Design of Steel Floor Decking
With the diferent designs for metal floor deck roll forming machines, we can manufacture varied steel floor decking that gives more strength, flexibility and efficiency, based on many practical cases and a multitude of solutions.
In addition to these advantages, we have some no less important benefits!For example, easier construction, the non-contamination of other materials, easier stockpiling and cleaning, safe formwork and platform on which to work, the bracing of the structure and the ease with which to install the facilities, among others.
If you are interested in roll forming the steel floor decking by your own, you may want to visit our steel decking roll forming machine page for more information about the equipment.
Frequently Asked Questions
What materials are typically used to manufacture steel floor decking? ›
Steel floor decking is most commonly roll formed from galvanized steel sheet. The galvanization provides corrosion resistance, which is important for a product that may be exposed to moisture during construction and throughout the life of the building. The specific grade and coating weight of the galvanized steel should be selected based on the required structural performance and the environmental conditions of the project, as these factors determine the deck’s long-term durability.
What are the typical material thickness and width ranges for steel floor decking coils? ›
The page explains that steel floor decking is typically roll formed from galvanized steel within a specific thickness and width range. The final dimensions of the deck profile are determined by the structural engineering requirements of the project, including the slab depth and the loads it must support. The width of the input coil is a key factor in the width of the final profiled sheet. For precise capabilities, you should consult a manufacturer with the specific project parameters.
How do I choose the correct steel floor decking profile for my project? ›
The correct profile is determined by several key engineering factors. These include the required slab depth, the weight of the concrete (normal weight or lightweight), the spacing of the structural support beams, and the uniform load that the finished floor system must carry. The profile’s shape, including its rib depth and the presence of embossments, is designed to create the necessary composite action with the concrete. A structural engineer will specify the profile based on these load and span calculations.
What are the main structural advantages of using a composite steel floor decking system? ›
A composite system leverages the best properties of both materials: it uses the tensile strength of the steel decking and the compressive strength of the concrete slab. The embossments on the steel decking are designed to interlock with the concrete, preventing longitudinal slip between the two materials and transverse movement between the slab and its supporting beams. This creates a stronger, more durable structural slab that is also lighter and does not require temporary props during construction.
Can steel floor decking be customized for different project requirements? ›
Yes, steel floor decking is not a one-size-fits-all product. Different ribbed designs and profiles are manufactured to meet specific structural and performance needs. This flexibility is made possible by the metal floor deck roll forming machines that can produce varied profiles with different depths and shapes. This allows engineers to select a design that provides the required strength and efficiency for a specific slab depth and loading condition, as outlined in the design section of the page.
How does steel floor decking speed up the construction process compared to traditional concrete flooring? ›
Steel floor decking is delivered to the site in pre-cut, pre-packaged bundles that can be quickly lifted by a crane to individual work areas. The sheets are then easily laid by hand, which significantly reduces the number of crane lifts required compared to precast concrete alternatives. Since the decking itself acts as a permanent formwork, there is no need for traditional shuttering or props, which saves substantial time and labor during the installation phase.
