Metal Floor Deck Roll Forming Machine

There are many standard metal deck or steel deck profiles that a metal floor decking roll forming machine is technically capable to produce, and these deck sheets are widely used in a variety of applications.

Steel decking floor roll forming machines have been designed for the production of various types of metal decks which are usually applied for roofing and floor industries, and sometimes for bridge construction as well.

Metal Floor Decking Applications

The most popular steel decks produced by our metal floor deck roll forming machine are currently used in the industiral applications as following:
Steel roof deck
The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;
Composite metal deck
The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Metal form deck
Metal form decks are produced and used extensively also in floor construction as a permenant steel base for poured reinforced concrete floor slabs.
Architectural deck
This kind of steel deck offers architects and engineers the ability to creat amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.
Bridge deck
Where a bridge has main beams installed at suitable centres, steel decking may be placed across the beams without additional supports, suitable for new construction and bridge rehabilitation.

Metal Floor Deck Roll Forming Machine Regular Components

5T/10T Decoiler
Manual/Hydraulic Type Optional
Feeding Guide
Feed materials to roll forming unit

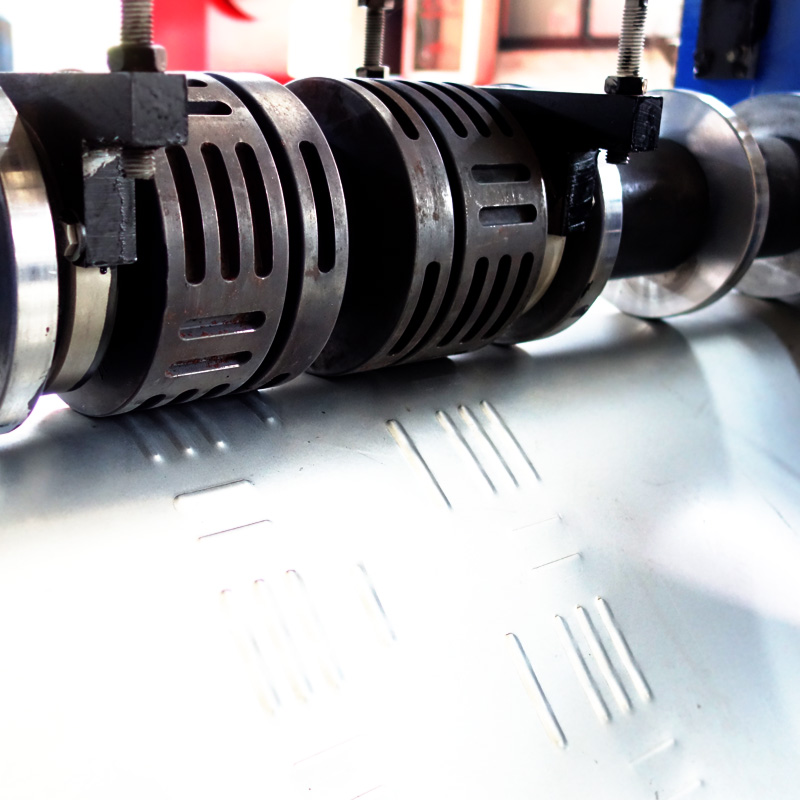

Roll Forming Unit with embossing roll
Roll form to required decking sheets
Hydraulic Cutting
Automatic cutoff as per required lengths and quantities
Exit Tables
Un-powered tube transmission racks
Control System
PLC Control with Inverter and encoder
All our features can be customized to customers

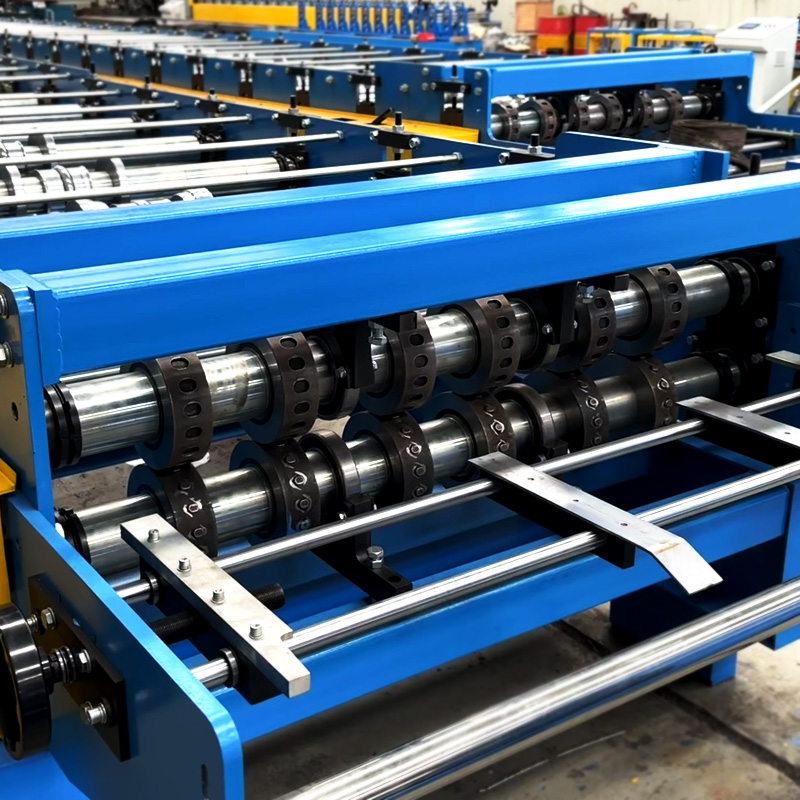

metal floor deck roll forming machine

Brief Introduction of metal floor decking roll forming machine

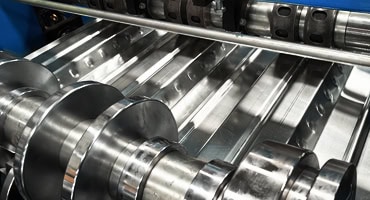

There are different steel deck roll forming machines manufacturing metal decks for different applications, and the configuration or components of each machine vary accordingly, for example, some steel decking floor roll forming machine have embossing rolling tools while some others do not.

As a Chinese enterprise, MTC has been awared that metal floor deck roll forming machines have been increasingly popular in Chinese market, and in China over 90% metal floor decking roll forming machines buyers produces metal floor deck and that’s why in China a deck roll forming machine is most of time named as metal floor deck roll forming machine or steel decking floor roll forming machine.

Generally a metal deck or steel deck floor roll forming machine consists of a 5TON manual de-coiler, feeding guide, an electrical entry shearing with 0.75KW motor power,a roll forming part including an embossing tools, transmission system, hydraulic system, a PLC control cabinet, a hydraulic oil pump and runout tables to support the final products.

Running Test of Steel Decking Roll Forming Machine

We made a running test of this steel decking roll forming machine as well as the 12m auto stacking machine. Client didn’t provide whole coil for testing, so we tested only short piece of steel sheet, but everything worked great.

Technical Specifications of metal floor deck roll forming machine

Material: Hot-dipped galvanized steel coils;
Thickness of Material: 0.8mm-1.2mm;
Coil Width: 1219/1250mm;
Coil Weight: 5 Tons;
Roller Stations: 26-33 stations;
Diameter of Shaft: 76mm;
Material of Shaft: 45# steel;
Material of roller: 45#steel with quenching treatment and coated with hard chrome 0.05mm thickness;
Rolling stands structure: conjoint type;
Machine Frame stand: 36#H Beam welded structural steel;
Forming speed: 0-12m/min;
Main Power: 2*11KW motor;
Overall Dimensions: 13500mmx1500mmx1300mm;
Weight of the machine: Appro.12 Tons;
Cutting: hydraulic cutting with three cutting blades method;
Material of Cutting Blades:Cr12 steel;
Hydraulic Power:4KW;
Cutting lengths and quantites: Automatically cutting according to the length and quantities the clients set on the touch screen;
PLC Control Box:700mmx1000mmx300mm;
Control system: Panasonic PLC, Inverter, CHNT transformer and Omron encoder;
Standard Electricity Demand: 380V/50/60HZ/3phase (a transformer will be required for different input Voltage);
“You’ve made such a great roll forming equipment that helps me complete my projects so much faster and easier. ”

We make things easy for projects.

Roll forming machine usually is always our first choice as long as we need to produce metal sheet or steel section products. A roll forming machine can do automatic jobs of bending, cutting, pressing for holes and slots, and straightening etc.

Roll forming machines have so many advantages over press brake and shearing machines! With rollforming equipment, we can save much more time, working area, money as well as labors.

There are numourous applications where we need a roll forming machine. For example, we need roll forming machines to produce metal roofing and wall/siding. We must use decking roll forming machines to produce metal or steel decking for roofing and floor. Guardrail roll forming machines are used for producing crash barriers or guard rails on highway construction. Besides, we can find in the markets c/z steel purlin roll forming machines, top hat purlin roll formers; stud and track roll former for light weight steel buildings; down pipe roll forming machines and roll forming machines for door products etc.

Roll Forming Machines Category​

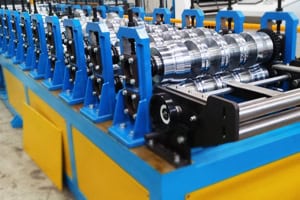

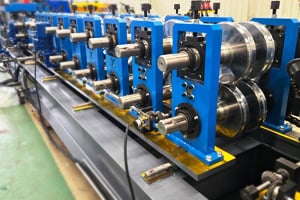

MTC has designed and built roll forming machines for Roofing  sheet,  Wall Cladding, Steel Purlins, Metal Decking, Guard Rails, Lightweigth Steel frames, Steel Windows and Door components, Steel Pipes, and many other custom profiles.
