Cold Roll Former Roll Forms Your Desired Profiles!

Roll Forming Machine is an equipment known as rollformer as well that forms steel coils/strips to desired shapes by feeding straight the sheets along the longitudinal and multiple pairs of continuous rollers without changing the thickness of materials at room temperature.

INTRODUCTION OF ROLL FORMING MACHINE

What is “ROLL FORMING MACHINE” ?

Roll Forming machine, also named “Roll Former“, which is a flexible and continuous process, where both the normal rules and the exceptions utilized. It has proved several times that the roll forming machine accomplish roll forming tasks which even seemingly impossible. Although it may take a longer time and much more money. On the other hand, it also showed that plans to roll form simple shapes can create disastrous results. If the designer don’t follow the basic rules of roll forming.

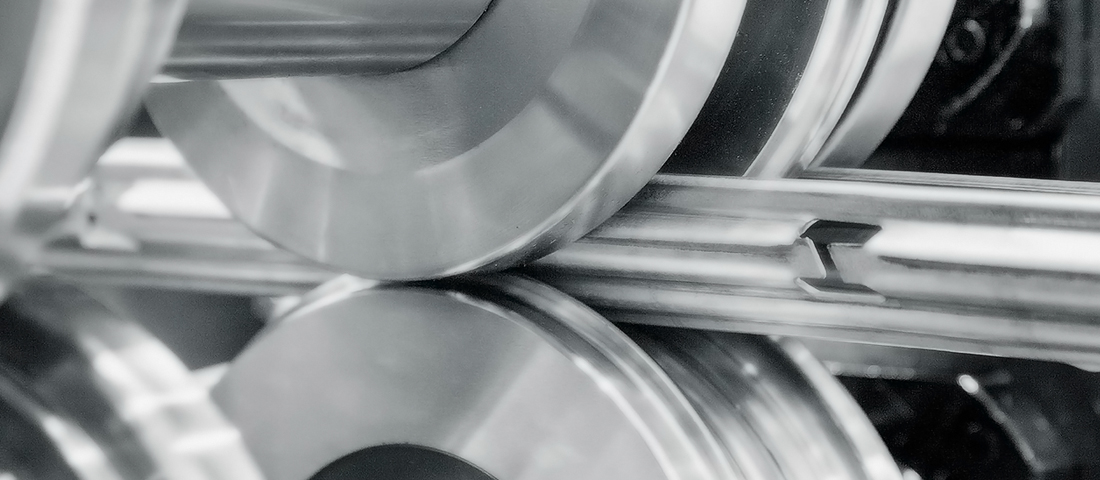

rollformer

ROLL FORMING MACHINE COMPONENTS

– DECOILER: Used to hold or support steel coils/rolls

– ROLL FORMER: It’s the core of roll forming system, forming the final shapes of sheet.

— MACHINE BASE: Usually welded by H-Beam steel or U-Channel steel. All the rolling tools, motors and transmission system installed on it.

— STANDS: There are generally Integrated Stands, welded with Steel Plate; Chrome-coated Individual Stands, and Cast-iron Individual Stands.

SHAFTS: All shafts MTC provides are solid shafts where rollers and bearings are mounted.

— TRANSMISSION SYSTEM: Chain-sprockets Transmission; Gear-boxes Transmission; Worm-Gear

— ROLLING TOOLS: Different materials like metal, rubber, TPE etc are common materials for fabricating rolling tools according to different products to make.

– CUTOFF UNIT:. Roll Forming Machine always require an unit to cutoff the coil strips of products into length. And the position can be ahead of the roll forming mill, between the roll forming stands, or after roll forming mill. Mostly used cutoff method as below:

– DIES: The punching, notching, mitering and other operations have the same press structures. While design the roll forming machine, we would considering 2 types of dies: Stationary die, which is solidly assembled on the mills base and Flying Die, which can slide on narrow rails. while cutting, notching, punching, the rollformer still works.

– HYDRAULIC SYSTEM: Most of roll forming machines need hydraulic system to provide power for cutoff, punching and pressing, and even driving main roll formers.

– CONTROL SYSTEM: If the roll former is the heart of roll forming system, the control will work as the brain. PLC computer control system is at this moment the best option for roll forming machine control.

What does MTC Offer?

MTC has introduced Copra software to the company since 2010s for the designing of rollformer. Thanks to its innovation, MTC now can technically build customised roll forming machines for many industries

Metal Sheet Roll Forming Equipment

Steel Purlin Roll Forming Line

Steel Door Roll Forming

Gutter&Downspout Rollformer

Pallet Racking Roll Former Machine

Customized Profile Roll Forming Machine

Furthermore MTC can also produce roll forming machines for Guardrails, Strut Channels, Cable Trays, Posts, etc applications. In addition Believe Industry Company also supply coil process equipment: slitting line, cut to length line, blanking line for steel factory.

rollformer

MTC welcomes friend home and abroad to visit its facility so that they know better and deeper about what the company can exacly make and offer. Contact us now for your questions.
