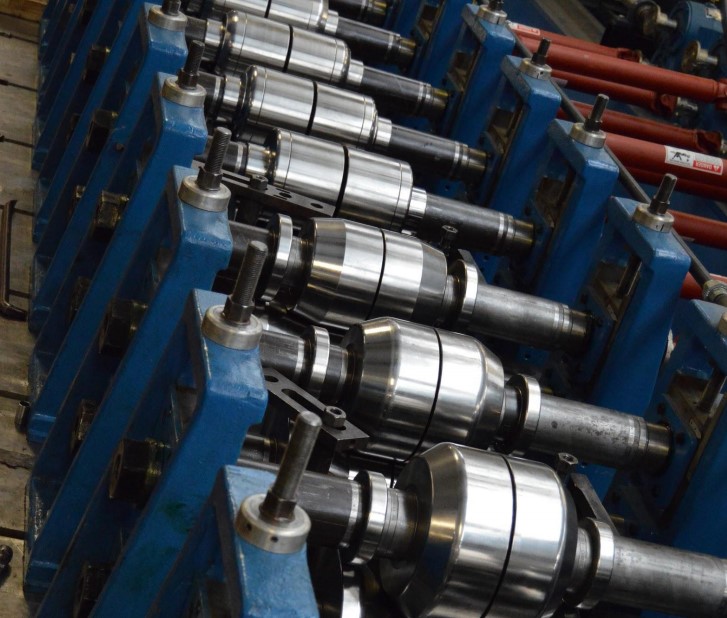

Drywall Stud and Track Roll Forming Machine
A drywall stud and track roll forming machine has been designed for the automatic manufacturing of metal c stud or u track continuously for light gauge or lightweight steel building systems.
“Thin sheets of galvanized steel can be cold formed into steel studs for use as a structural or non structural building material for both external and partition walls in both residential, commercial and industrial construction projects.“
In modern buildings, people tend to use steel because steel is lightweight, recyclable, costs less money and time, compared to traditional clays, stones or bricks. In a lightweight or light gauge steel building, most of building materials are made of steel, and most of these steel building materials are manufactured by roll forming machines, one of which is drywall stud and track roll forming machine that has been designed for the continuous and automatic production of metal c stud and u tracks applied for both exterior and partition walls in both individual and industrial buildings.
Table of Contents
Brief Introduction of Drywall Stud and Track Roll Forming Machine
Metal c stud and u tracks are great inventions in steel building projects, and that makes , or even all the lightweight or light gauge steel frame roll forming machines highly popular in the international.
Due to the technology monopoly, there are rarely Chinese manufacturers can provide steel framing solutions for lightweight or light gauge steel buildings, but for producing drywall stud and track roll forming machine Chinese manufacturers are no-doubt reliable.
A drywall stud and track roll forming machine usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transimission unit, a hydraulic unit, PLC control unit, and runout tables.
Due to the technology monopoly, there are rarely Chinese manufacturers can provide steel framing solutions for lightweight or light gauge steel buildings, but for producing drywall stud and track roll forming machine Chinese manufacturers are no-doubt reliable.
A drywall stud and track roll forming machine usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transimission unit, a hydraulic unit, PLC control unit, and runout tables.
Technical Specifications of Drywall Stud and Track Roll Forming Machine
- Decoiler Type: Manual Decoiler
- Weight Capacity Of Decoiler:3 Tons;
- Material: Galvanized steel strips;
- Material Thickness:0.6-1.2mm;
- Shaft Diameter:70mm;
- Material of shaft: 45# steel;
- Forming Roller stand:15 stations;
- Roller material: 45# steel with the surface coated with hard chrome 0.05mm;
- Main Power: 5.5KW;
- Transmission: by chain-brackets;
- Cutting type: Hydraulic cutting;
- Hydrauli power: 3KW;
- Hydraulic Blade and cutter material: Cr12 steel, quenching process 58-62;
- Electrical Control System:Panasonic PLC Board with Inverter, Omron Encoder;
- Electricity Input: 380V, 3 Phase 50Hz;
- Operation: Touch Screen;
“You’ve made such a great roll forming equipment that helps me complete my projects so much faster and easier. ”
We make things easy for projects.
Roll forming machine usually is always our first choice as long as we need to produce metal sheet or steel section products. A roll forming machine can do automatic jobs of bending, cutting, pressing for holes and slots, and straightening etc.
Roll forming machines have so many advantages over press brake and shearing machines! With rollforming equipment, we can save much more time, working area, money as well as labors.
There are numourous roll forming applications where we need a roll forming machine. For example, we need roll forming machines to produce metal roofing and wall/siding. We must use decking roll forming machines to produce metal or steel decking for roofing and floor. Guardrail roll forming machines are used for producing crash barriers or guard rails on highway construction. Besides, we can find in the markets c/z steel purlin roll forming machines, top hat purlin roll formers; stud and track roll former for light weight steel buildings; down pipe roll forming machines and roll forming machines for door products etc.
Roll forming machines have so many advantages over press brake and shearing machines! With rollforming equipment, we can save much more time, working area, money as well as labors.
There are numourous roll forming applications where we need a roll forming machine. For example, we need roll forming machines to produce metal roofing and wall/siding. We must use decking roll forming machines to produce metal or steel decking for roofing and floor. Guardrail roll forming machines are used for producing crash barriers or guard rails on highway construction. Besides, we can find in the markets c/z steel purlin roll forming machines, top hat purlin roll formers; stud and track roll former for light weight steel buildings; down pipe roll forming machines and roll forming machines for door products etc.
Related Light Gauge Steel Frame Roll Formers
The most widely used lightweight or light gauge steel frame roll forming machines that can be found in the markets are like, metal stud and track roll forming machine, roof truss roll forming machine, top roof hat purlin roll forming mahine, roof and ceiling batten roll forming machine, and furring and hat channel roll forming machine etc.
