Roll former manufacturers often receive inquiries for klip lok machines, however many sales don’t even have any idea what a klip lok profile looks like. Understanding the specifications and features of klip-lok roofing is essential for anyone in the construction industry, particularly when searching for solutions that eliminate the need for fixing holes on sheets.

Whenever it comes to the need for eliminating fixing holes on sheets, nothing comes bigger or better than klip-lok roofing or panels that allow for free expansion and contraction under temperature variations. This capability makes them particularly useful for a variety of applications in different climates, underscoring their versatility and durability.

The Development of Concealed Fixing Klip Lok Sheets

A concealed fixing roof sheets produced by KLIP-LOK roll forming machines has transformed the roofing landscape. Introduced by Lysaght, this strong, durable, and versatile long-length roof or wall cladding features an interlocking profile and clip fixing system. This innovation allows for the use of Klip lok sheets in various applications ranging from low-pitched roofs to vertical or horizontal ribbed walling.

With the growing demand for concealed fixed klip lok sheets for both commercial and individual buildings, the advantages are evident. The cladding not only provides aesthetic benefits but also enhances the structural integrity of the buildings, making it a popular choice among architects and builders alike.

Klip Lok Profiles: A Comparative Overview

KLIP-LOK^® is a roof or wall system that is developed and registered by Lysaght (BlueScope Steel).

CLIP FIXED STEEL ROOFING OR WALLING FOR SUPREME WATERTIGHTNESS

Featuring a substantial, bold rib rising from wide, fluted pans, KLIP-LOK® creates a distinctive linear visual, uses a concealed fixing system and is ideally suited to near flat roof planes, including on large commercial & industrial buildings or on low pitched rooflines on residential buildings. KLIP-LOK®’s concealed fixing clips allow for superb watertightness.

There are two prominent types of klip lok profiles available: KLIP-LOK 406 and KLIP-LOK 700.

• Klip-Lok 406: This profile features three trapezoidal ribs positioned at 203 mm centers, providing a net cover of 406 mm. Its rib height measures between 41-45 mm, which assists in creating capillary breaks and ensuring a robust structure.
• Klip-Lok 700: This profile includes four trapezoidal ribs at 233 mm centers, yielding a net cover of 700 mm. Similar to the 406 model, it boasts a rib height of 41-45 mm for superior performance.

Both profiles include shallow ribs on each pan to increase stiffness and stability, making them ideal for various environmental conditions.

Features of Concealed-fixed Steel Cladding (Klip Lok 406 and Klip Lok 700)

The unique design of the klip-lok sheets ensures excellent performance characteristics which include:

• Water-Carrying Capacity: The sheets are engineered for optimal rainwater drainage, minimizing the risk of leaks and related issues.
• Structural Strength: With robust materials and design, these sheets boast significant durability and can withstand harsh weather conditions.
• Ease of Erection: Quick to install, klip-lok sheets streamline the construction process for both experienced contractors and DIY projects.
• Versatility: Their adaptability makes them suitable for various climatic conditions and roofing applications.
• Safety and Stability: Klip-lok sheets eliminate common roofing issues such as leaking around fasteners or rusting.

Installation and Maintenance Benefits

While klip-lok sheet roofing may come with a marginally higher price tag compared to conventional screw-fix roof decking, the benefits far outweigh the costs. The layout of wider sheets means fewer products are required, allowing for faster installation times and minimizing seams, which can be points of failure. Furthermore, the 42mm rib profile adds immense strength, reducing the need for additional support structures such as steel purlins.

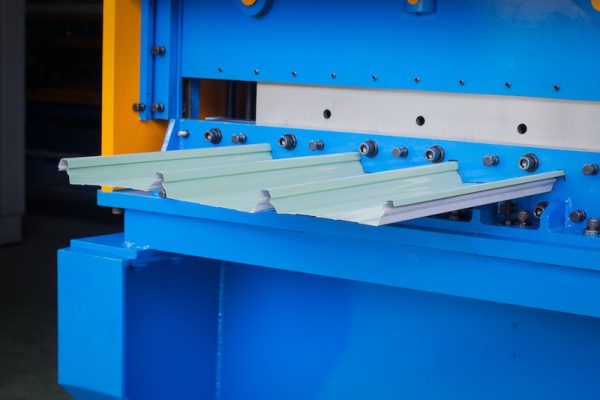

General Introduction of Klip-lok Roll Forming Machine

The klip lok roll forming machine is engineered for the automatic production of klip-lok 406 or klip-lok 700 sheet profiles in continuous lengths. Controlled by a PLC computer system, these machines possess distinct advantages over traditional metal sheet roll forming machines. Features include:

• Increased Roll Forming Stations: With up to 26 stations, these machines can efficiently handle more complex profiles.
• Powerful Motor: Equipped with an 11KW motor, they provide sufficient torque for optimal performance.
• Material Versatility: Suitable for various materials, including G550 galvanized steel, prepainted steel, aluminum, stainless steel, and occasionally copper, the machine accommodates a thickness range of 0.3-0.6mm.

Main Components of Klip Lok Machine

The standard components of a klip lok roll forming machine include:

• Manual decoiler
• Feeding guide
• Roll Former
• Hydraulic post-cutting
• Electrical control cabinet
• Hydraulic oil pump
• Runout tables

To maximize production efficiency, clients can opt for additional tools like the hydraulic decoiler and auto stacking machine to automate the entire klip lok roll forming line.

Frequently Asked Questions (FAQs)

1. What is a klip lok roll forming machine?

A klip lok roll forming machine is a specialized equipment designed for the automatic production of klip-lok roofing sheets with interlocking profiles.

2. What are the benefits of klip-lok roofing?

Klip-lok roofing offers excellent water drainage, durability, ease of installation, increased strength, and versatility in various climatic conditions.

3. How do klip lok sheets compare to traditional roofing options?

Klip lok sheets provide a more robust alternative to traditional roofing, as they eliminate leaking, enhance structural integrity, and reduce installation times.

4. Can klip lok roofing be used in different climates?

Yes, klip lok roofing is designed to be suitable for various climates, ensuring durability and performance in both hot and cold conditions.

5. What materials can be used with the klip lok roll forming machine?

The machine can work with materials such as G550 galvanized steel, prepainted steel, aluminum, stainless steel, and occasionally copper.

6. Are there different types of klip lok profiles?

Yes, the two primary profiles are KLIP-LOK 406 and KLIP-LOK 700, each with distinct dimensions and construction features.

Contact us for more detailed specifications and inquiries. There are also other concealed fixed roll forming machines in the market. The most common concealed fixing roll forming machines can be found in China are 470 type concealed fixing roof sheet roll forming machine, 820 type concealed fixed roof panel roll forming machine, and LR18/KR 18 or LR24/KR24 standing seam roll forming machine in North American market, particularly in Mexican market.
