Technical Advances in the Roll Forming Industry

Roll forming technology is a process that uses rolls to form metal into various shapes. Roll forming machines can be used to manufacture products such as fences, gates, and even architectural features such as balustrades and railings. Roll forming finds widespread demand and utility in hardware, construction, medical, and many more fields.

Previously, these shapes were created by hand. However, now, with advancements in science and technology, roll-forming machines have evolved to be able to produce well-shaped consistent results over time. The roll-forming industry is growing rapidly also due to its efficiency in producing small-batch runs of high-quality products. This article will explore some of the latest technological advancements that have been made in this field.

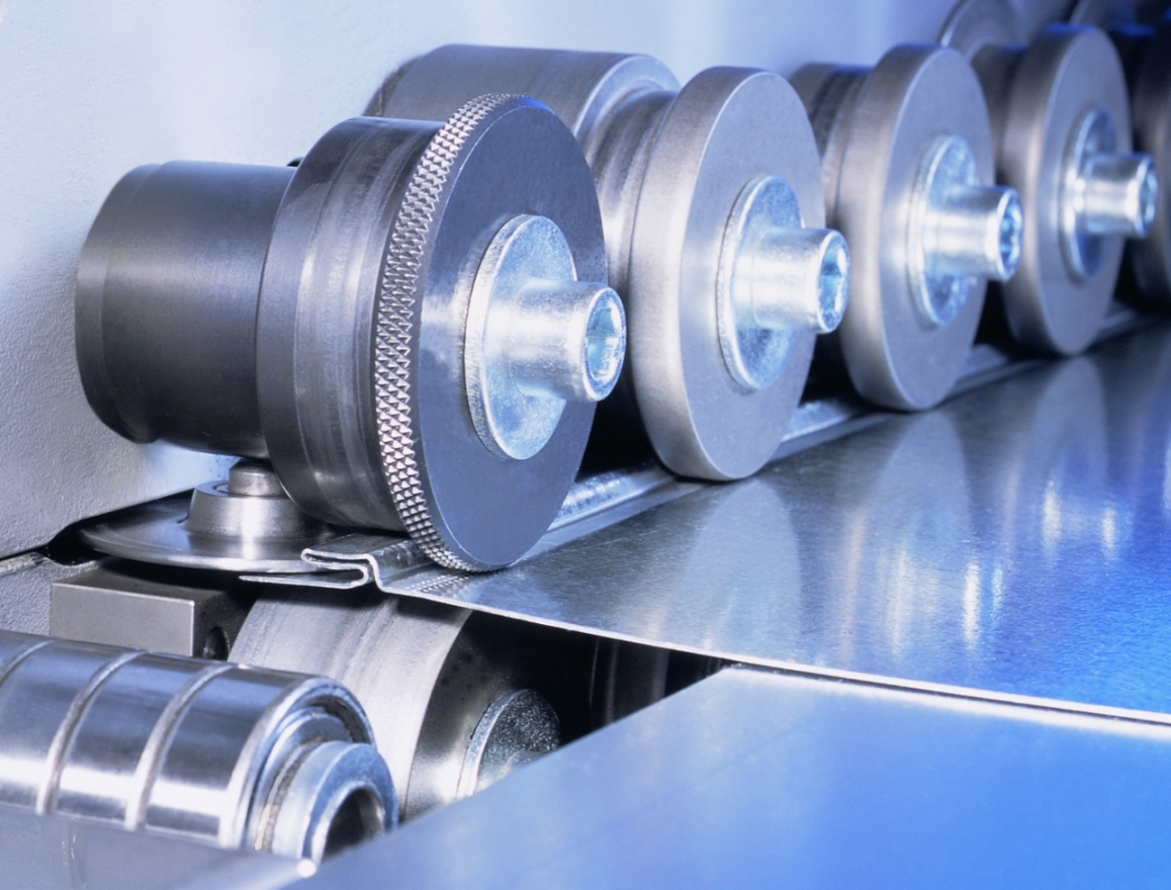

roll forming

1. Large Scale Roll Forming Machines

A roll former machine is a machine that forms metal by passing it through a set of rollers. Roll forming machines are used in manufacturing industries, such as the automotive and construction sectors. They can also be used for modeling and prototyping applications.

Roll-forming machines are sold both new and used depending on customers’ needs and budgets. Large-scale roll-forming machines tend to produce parts that can have reduced costs but require larger quantities to be economically viable.

The aim is to find the needed product at an affordable price while maintaining quality parts that will last through multiple projects over time. Large-scale roll-forming machines also contribute to much faster project completion due to their ability to produce large numbers over a limited period.

2. Mechanical Roll Forming Machine

There are many types of roll-forming machines out there. However, the mechanical roll former is the most commonly used type. It can roll sheets of metal into usable shape consistency. They are also low on maintenance other than a one-time investment to purchase the machine.

This tool is useful to effectively form sheet metal into the intended form. The machine uses a hydraulic cylinder to press the workpiece through the rolls forming it into shape.

The metal roll forming machine can be used in both small-batch and high-volume production environments, though it may struggle with particularly large sheets. It’s also not suited for tight radius bending, but that can be done with a hydraulic press machine or rolling shutter machines.

3. Rolling Shutter Machines

Roll-forming machines have been around for a long time. The first machine was invented in Germany at the end of the 19th century. Since then, many advancements have been made to improve efficiency and reduce costs.

Rolling shutters are one such advancement. They consist of two metal sheets rolled into a tube shape using hydraulic pressure. These are similar to hydraulic presses except for one key difference – instead of pressing down on material from above, they pull down on it from below.

This allows them to efficiently form smaller pieces without being limited by size or shape factors like traditional malleable iron machinery would be. They can be used as building materials or even patio furniture frames.

The benefits of rolling shutter technology include the following:

  • Lower price point than traditional steel framing methods.
  • Reduced labor cost due to shorter assembly times and fewer human resources needed.

4. Industrial Metal Roll Former

When it comes to metal roll-forming machines, there are two types of industrial metal roll-formers.

  • Hydraulic Press Machine: This machine is best suited for light and medium-duty applications. The machine features a sliding head and a cylindrical die (the tool used to form the metal).

     It also has an air bladder system that allows control of the pressure applied during rolling. In this way, the hydraulic machine press can form sheet metal into the required shapes. Hydraulic press machines also do not require excessive maintenance and can last for years.

  • Roll Former: Used mainly for heavy-duty applications, this equipment consists of fixed head clamps onto steel sheets as they pass through its center point.

     Here, multiple tools can be attached so that several rolling processes can occur simultaneously on one steel stock (for example, bending and flattening would be done at once). This process provides more efficiency than using two machines (one for bending and another for flattening) because it eliminates downtime between operations.

5. Tile Roll Forming Machines

The tile roll former is designed with single-sided or double-sided aluminum profiles. It also works well with steel, copper, and zinc profiles. This machine can make complex shapes that can be otherwise both difficult and expensive to produce.

The metal tile roll former equipment set comes complete with everything required to get started on a project immediately:

  • Tooling (roll former).
  • Frame assembly (support structure).
  • Fixtures/hardware (nails).

A beneficial feature of these sets is that they come in three different sizes depending on the requirement – the smallest being 24″, 36″, or 48″, while the largest measures 96″.


An industrial roll-forming machine, or the industrial roller, is an important tool for making different products. Over time, the roll forming industry has progressed to be able to be used to form various kinds of steel and other metals into different shapes and sizes.

With its speed and efficiency, there are many reasons to look for a hydraulic press machine for sale. These machines come in various sizes, depending on the requirement and intended use of the finished product.
