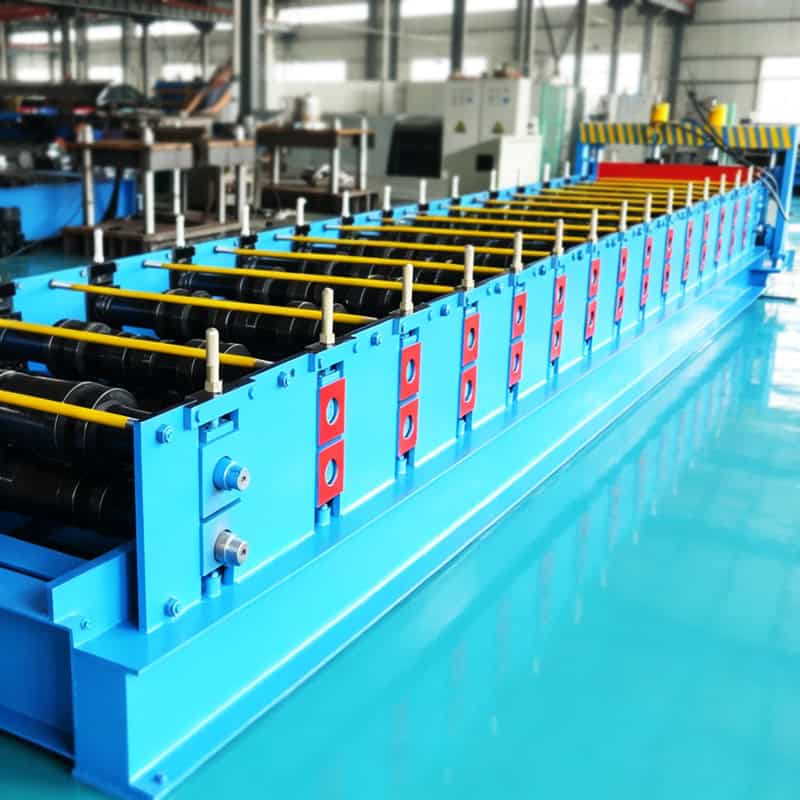

A metal wall deck roll forming machine is engineered to produce structural wall deck panels for steel-framed buildings, modular construction, prefabricated cabins, and industrial enclosures. With precise roll forming and stable continuous production, it provides an efficient manufacturing solution for modern wall cladding systems.
The below Structural Wall Panel Profiles are representative examples. Additional structural wall panel profiles can be customized according to customer drawings or local market standards.
Have a custom decking profile? Send us your drawing to get a tailored quotation.
The metal wall deck machine is engineered to produce structural steel wall panels for industrial buildings, modular construction, equipment shelters, prefabricated structures, and steel enclosure systems. It continuously forms high-strength steel coils into ribbed wall deck profiles with excellent rigidity, dimensional accuracy, and long-term structural performance.
Designed for deep rib, high rib, industrial ribbed, and customized wall deck profiles, the system meets diverse wall system requirements for steel construction projects worldwide. MTC provides customized wall deck roll forming machine solutions based on tailored requirements.
Since wall deck panels are often developed for specific structural and architectural requirements rather than standardized profiles, custom roll tooling design plays a key role in delivering a complete production solution.
The following technical parameters represent a standard configuration of the structual wall panel roll forming machine, customizable based on profile design, material specifications, and production requirements.
| Parameters | Specifications |
|---|---|
| Material Type | GI/PPGI/CR |
| Thickness | 0.8-1.5mm; 2-3mm |
| Width | 1000 – 1250 mm |
| Yield Strength | 235Mpa – 345 MPa |
| Profile Types | Structural Wall panels |
| No. of Stations | 18 – 22 stations |
| Roller Material | High-grade 45# steel |
| Dia. of Shaft | 80 mm |
| Main Power | 11-22 kW |
| Parameters | Specifications |
|---|---|
| Forming Speed | 0 – 15 m/min |
| Cutting System | Hydraulic Cutoff |
| Control System | PLC Control System |
| Hydraulic Power | 4 kW |
| Decoiler | 5 Ton Manual / Hydraulic type |
| Machine Length | Approx. 15 – 22 m |
| Machine Weight | 8 – 10 Tons |
| Power Supply | 380V / 50Hz / 3 Phase (customizable) |
Most wall panel profiles are developed according to local building systems, architectural designs, and project requirements instead of universal standards.
Yes. Our engineering team can develop complete roll tooling based on profile drawings, samples, or CAD files.
Yes. Depending on the profile design, the metal wall deck roll forming machine machine can be configured with cassette systems, quick-change tooling, or interchangeable roller sets.
Precision-machined rollers and servo-controlled production ensure stable dimensions, straight panels, and consistent profile quality.
Yes. The structual wall panel roll forming machine can manufacture steel skins used for PU, PIR, EPS, and rock wool sandwich panel systems.
Options include hydraulic decoiler, hydraulic preshear, punching and automatic stacking etc.
They are widely used in industrial buildings, warehouses, modular buildings, agricultural facilities, commercial projects, and equipment enclosures.
We customize the metal wall deck machine according to your profile drawing, material specifications, required capacity, local standards, and factory layout.
