Door and Window Profile Machines, Roll Forming Door & Window 20 Years Excellent Production

Roll forming machines are fundamental to modern steel door and window production, and MTC combines design experience with field-tested engineering to deliver tailored roll forming solutions. There are common door and window profile machines as following. Rolling shutter panel and slat roll forming machines that produce interlocking slats and panels with precise profile geometry; door track and guide rail formers that ensure smooth operation of sliding and roller doors; and robust safety door frame roll forming machines engineered for structural integrity and accurate miters; window frame roll formers for aluminum and steel frames, sliding window track machines for low-friction guides etc. MTC’s designs emphasize repeatable tolerances, quick setup, and material-efficient nesting—helping fabricators reduce scrap, speed line changeovers, and deliver consistent door and window components.

Main Component of Door & Window Profile Machines

3T/5T Decoiler

2-in-1 Decoiler and Leveler

Servo Feeder & Punching

Feed materials to roll forming unit

Roll Forming Unit

Roll form to required shapes

Hydraulic Cutting

Automatic cutoff as per required lengths and quantities

Exit Tables

Unpowered tube transmission racks

Control System

PLC Control with Inverter and encoder

All our features can be customized to customers

Main Catagories

HIGH-PRECISION AND AUTOMATION

Optimize your workforce by upgrading your Door & Window Profiles Production

Rolling Shutter Slat Roll Forming Machine

Application: Shutter Door Panels, Shopfront Shutters, Industrial security doors

The Rolling Shutter Slat Roll Forming Machine is a high-precision system designed for producing interlocking steel shutter slats used in industrial, commercial, and residential door systems. Each machine ensures smooth forming, precise interlock, and consistent slat dimensions. The machine typically features automatic feeding, accurate guiding, servo cutting, and PLC control for efficient production. Its robust forming structure and precise roller design enable stable running, minimal noise, and long service life. Optional equipment, such as polyurethane foaming units or embossing rollers, can also be integrated for insulated or decorative shutter slats.

Learn More

Roller Shutter Panel Roll Forming Machine

Applications: Rolling Shutter doors, Shopfront Shutters, and Garage Doors

The Shutter Door Panel Roll Forming Machine is designed for continuous production of interlocking metal shutter slats. It integrates decoiling, feeding, roll forming, and hydraulic cutting into one automatic line. With PLC control and precision gearbox drive, it ensures stable forming, accurate length cutting, and smooth operation. The machine is suitable for galvanized or pre-painted steel up to 1.2 mm thickness, providing high productivity and consistent panel quality for commercial and industrial shutter door manufacturing. The hydraulic cutting system ensures burr-free edges and maintains dimensional accuracy.

Learn More

Shutter Door Track Roll Forming Machine

Applications: Rolling shutter door side tracks, guide rails

The Shutter Door Track Roll Forming Machine is designed to produce precise metal guide rails used in rolling shutter systems. It combines decoiling, leveling, roll forming, and hydraulic cutting into one seamless automatic line. Driven by a gearbox and controlled by PLC, the system ensures stable operation, accurate forming, and smooth track edges. With adjustable forming speed and profile changeover, it supports flexible production for various door designs. Suitable for galvanized steel up to 1.5 mm thick, this machine delivers consistent performance, low noise, and long service life—ideal for both commercial and industrial shutter door manufacturers.

Learn More

Safety Door Frame Roll Forming Machine

Highlights: 45° Angle Cutting, Quick Setup, Full Automation

The Safety Door Frame Roll Forming Machine is engineered for producing high-precision metal door frames used in steel and security door systems. The line integrates decoiling, leveling, punching, roll forming, and cutting into one continuous automatic process. Equipped with a servo-driven hydraulic cutter, it supports both straight and 45-degree miter cutting for accurate corner joints and easy assembly. Controlled by a PLC system, operators can easily adjust cut length and quantity. This high-efficiency, low-maintenance solution helps manufacturers achieve consistent output and superior door frame quality for modern safety door production.

Learn More

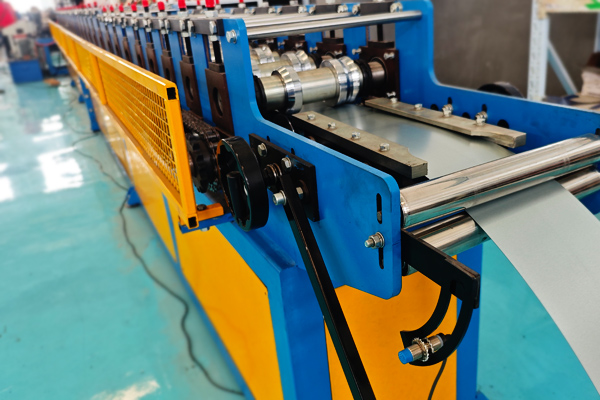

Window Frame Roll Forming Machine

Highlights: Servo Feeding, Hydraulic Punching, 45° Precision Cutting

This machine is specially designed for producing galvanized steel window frame profiles with a thickness of 0.4–0.6 mm. The line integrates decoiling and leveling (2-in-1), servo feeding, hydraulic punching, roll forming, and 45° angle cutting in one continuous operation. Equipped with a servo feeder and PLC control system, the line ensures accurate length positioning and consistent punching patterns.The hydraulic punching unit allows for customized hole designs, while the final 45° cutting system provides clean and accurate cuts for window frame assembly, minimizing post-processing and ensuring a perfect fit during installation.

Learn More

Questions & Answers

Explore the common questions and answers about Door & Window Profile Machines

Q1: What types of profiles can the door and window profile machine produce?

A: The door and window profile roll forming machine can manufacture shutter slats, panels, side tracks/guide rails, safety door frames, and window frame profiles.

Q3. How is the 45-degree miter cutting achieved on steel door frame roll forming machines?

A: The Safety Door Frame Roll Forming Machine integrates a hydraulic miter-cut system allowing 45° diagonal cutting without manual adjustment. The PLC synchronizes cutting timing with roll forming speed, ensuring both inner and outer edges are precisely aligned—ideal for fire-rated and security door applications.

Q5: How does the window frame roll forming machine ensure tight dimensional tolerance?

A: Window Frame Roll Forming Machines are equipped with fine-tuned roller geometry and automatic gauge adjustment. Servo-driven feeding and precision cutters help maintain ±0.5 mm length accuracy, which is crucial for aluminum or steel window profiles requiring perfect alignment with glass and sealing strips.

Q7: What’s the forming speed and cutting accuracy for rolling shutter slat machines?

A: Typical Rolling Shutter Slat Roll Forming Machines operate at 10–15 m/min with a length accuracy of ±1 mm. The servo flying shear ensures non-stop cutting, maintaining high throughput and minimal material waste—suitable for mass production of aluminum or steel shutter slats.

Q2: What materials can be used for different door and window profile machines?

A: Most MTC roll forming machines—including door frame, window frame, and shutter panel machines—can process galvanized steel, pre-painted steel, and aluminum. The door frame line is compatible with thicker gauges (up to 2.0 mm), while shutter slat and track machines typically use 0.5–1.0 mm coils for smoother forming and faster feeding.

Q4: What differentiates the shutter track roll forming machine from other door profile lines?

A: Unlike door frame machines, the Rolling Shutter Door Track Roll Forming Machine focuses on U- or C-shaped guide rails. It includes wear-resistant rollers and optional nylon-coated rolls to prevent scratching on pre-painted materials. The track machine emphasizes smooth sliding performance and accurate fit with shutter slats.

Q6:How does the shutter door panel roll forming line maintain surface quality?

A: The Rolling Shutter Panel Roll Forming Machine uses a polyurethane-coated or mirror-polished roller surface to avoid scratches on pre-painted coils. Its hydraulic press embossing unit can also imprint decorative ribs or patterns, improving panel stiffness and appearance without secondary processing.

Q8: What control system is used, and can it integrate with production data?

A: All door and window profile machines are PLC-based (usually Panasonic, Siemens or Xinjie Servo system). The system stores different profile recipes and supports optional IoT connectivity, allowing remote monitoring of coil usage, production counts, and cutting data for full smart-factory integration.

Didn’t find the answer you are looking for? Contact our support
