In the booming solar energy industry, ‌solar channel roll forming machines‌ are revolutionizing the production of essential mounting frameworks like ‌solar strut channels‌, ‌Unistrut channels‌, and ‌C-strut channels‌. To meet the demand for precision-crafted solar channels, ‌solar channel roll forming machines‌ automate production with unmatched efficiency. These specialized machines transform raw metal coils into precision-engineered profiles that form the backbone of solar panel installations. Designed for durability and adaptability, solar channels are crafted from galvanized steel, or stainless steel, with thicknesses ranging from ‌1.5mm to 3.0mm‌, ensuring resistance to corrosion and extreme weather.

Solar channels, (also known as solar strut channels, Unistrut channels, or C-strut channels), are essential components in the construction of solar panel mounting systems. In the rapidly expanding solar energy sector, ‌solar channels‌ play a pivotal role in ensuring the structural integrity and efficiency of solar panel installations. These structural elements provide support and stability, ensuring that solar panels remain securely fastened in various environmental conditions.

Materials and Specifications

Solar channels are typically manufactured using high-strength steel materials, such as:

• Galvanized Steel (GI) – Provides excellent corrosion resistance.
• Cold Rolled Steel (CRS) – Offers enhanced mechanical properties and formability.
• Stainless Steel (SS) – Ensures durability and longevity in harsh weather conditions.

The thickness of solar channels generally ranges from 1.5mm to 3.0mm, depending on the load-bearing requirements.

Shapes and Functions

Common shapes for solar strut channels include:

• C Strut Channels – Versatile and widely used in solar mounting structures.
• U Strut Channels – Provide additional support and stability.
• Z Strut Channels – Ideal for specific installation angles and structural support.

The primary function of these channels is to serve as mounting rails for solar panels, providing a secure framework for solar farms, residential rooftop installations, and commercial solar projects. They also allow for easy integration with fasteners and brackets to adjust panel angles efficiently.

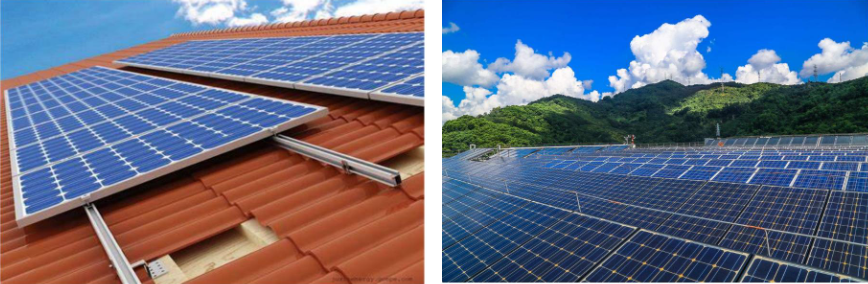

‌Applications‌

• ‌Solar Carports‌: Combine energy generation with shaded parking solutions.
• ‌Rooftop Solar‌: Channels anchor panels to rooftops without compromising structural integrity.
• ‌Ground-Mounted Farms‌: Provide elevated frameworks to optimize sun exposure.

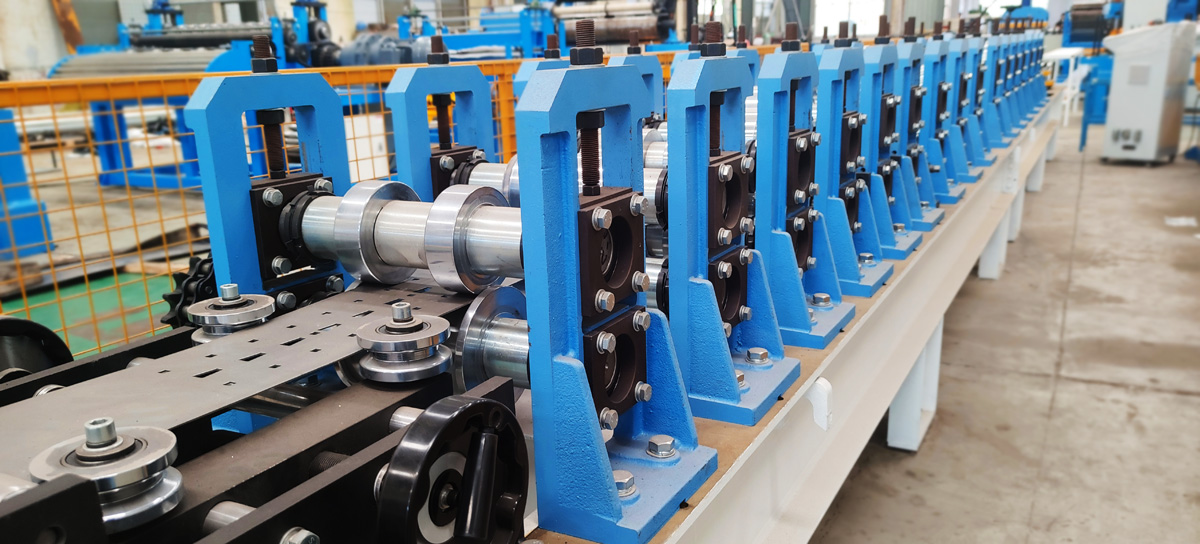

Solar Channel Roll Forming Machine: Solar Panel Mounting Structure Roll Forming Machine

A solar channel roll forming machine is an advanced piece of equipment designed to manufacture solar strut channels with high precision and efficiency. This automated system ensures a continuous production process while maintaining accuracy and consistency in dimensions.

Machine Workflow

A standard unistrut channel roll forming machine line includes the following processes:

1. Decoiling – Uncoiling the metal strip from a coil.
2. Feeding – Transferring the metal strip into the roll forming system.
3. Punching – Creating holes or slots in the metal strip as per design specifications.
4. Roll Forming – Gradually shaping the metal strip into the desired channel profile through multiple forming stations.
5. Cutoff – Cutting the formed channel to the required length.

Different Configurations for Enhanced Efficiency

The roll forming machine can be customized based on production speed and operational requirements:

• High-Speed Machines:
  • Equipped with servo feeders for precise material handling.
  • Utilize hydraulic pressing machines for fast and efficient punching.
  • Feature a fly-saw cutoff system to allow continuous production without stopping.
• Standard Machines:
  • Include a hydraulic punching machine for hole-making.
  • Use a stop-to-cutoff system, where the machine pauses before cutting.

Machine Specifications

A typical solar channel roll forming machine has the following specifications:

• Forming Stations: 24-26 stations for precise shaping.
• Motor Power: Dual 11KW motors ensuring high efficiency.
• Shaft Diameter: 80mm for stability and durability.
• Rolling Tool Material: GCr15 bearing steel for long-lasting performance.
• Control System: PLC-based automation for user-friendly operation and process control.
• Transmission System: Available in Gearbox Transmission for high-power applications and Chain Sprocket Transmission for cost-effective solutions.
• Hydraulic System: Uses high-quality hydraulic components to ensure smooth punching and cutting operations.
• Material Thickness Capability: Can process steel thickness ranging from 1.5mm to 3.5mm.
• Production Speed: Typically ranges between 10-30 meters per minute depending on the machine configuration.
• Cooling System: Includes an advanced cooling mechanism to maintain the longevity of forming rollers and hydraulic systems.
• Safety Features: Equipped with emergency stop functions and protective guards to enhance operator safety.

Advantages of a Solar Strut Channel Roll Forming Machine

• Customizable Hole Punching – Advanced punching systems allow precise hole placement according to specific project requirements.
• High Efficiency – Continuous roll forming increases production speed, reducing production time and improving overall efficiency.
• Superior Accuracy – Consistent quality and precise dimensions ensure a perfect fit for solar mounting systems.
• Versatile Configurations – Customizable to different solar channel profiles, catering to various customer requirements.
• Automated Operation – Reduces labor costs and improves safety through a fully automated system controlled by PLC technology.
• Long Service Life – Durable construction ensures minimal maintenance, reducing downtime and operational costs.
• Flexible Transmission Options – Gearbox transmission provides higher torque and durability, while chain sprocket transmission offers affordability and ease of maintenance.
• Adaptability to Various Materials – Capable of processing different types of steel, including galvanized steel, cold-rolled steel, and stainless steel.
• Energy Efficiency – Optimized power consumption ensures that the machine operates efficiently while minimizing energy waste.
• Easy Maintenance – Designed for easy access to key components, making routine maintenance hassle-free.

Ideal for manufacturers targeting rooftop solar arrays, ground-mounted farms, or solar carports, these machines ensure cost-efficiency, scalability, and compliance with global engineering standards. By integrating cutting-edge technology and robust materials, c strut channel roll forming machines empower the renewable energy sector to meet rising demand while driving sustainable innovation.

Investing in a uni strut channel roll forming machine ensures streamlined production, high-quality output, and cost-effectiveness in manufacturing solar mounting structures. With advanced automation and precision engineering, these machines are ideal for businesses involved in solar infrastructure development.
